Caricabatterie CBA6V10 - 6V 1A
search
  • Caricabatterie CBA6V10 - 6V 1A

Caricabatterie CBA6V10 - 6V 1A

38,00 €
Tasse escluse

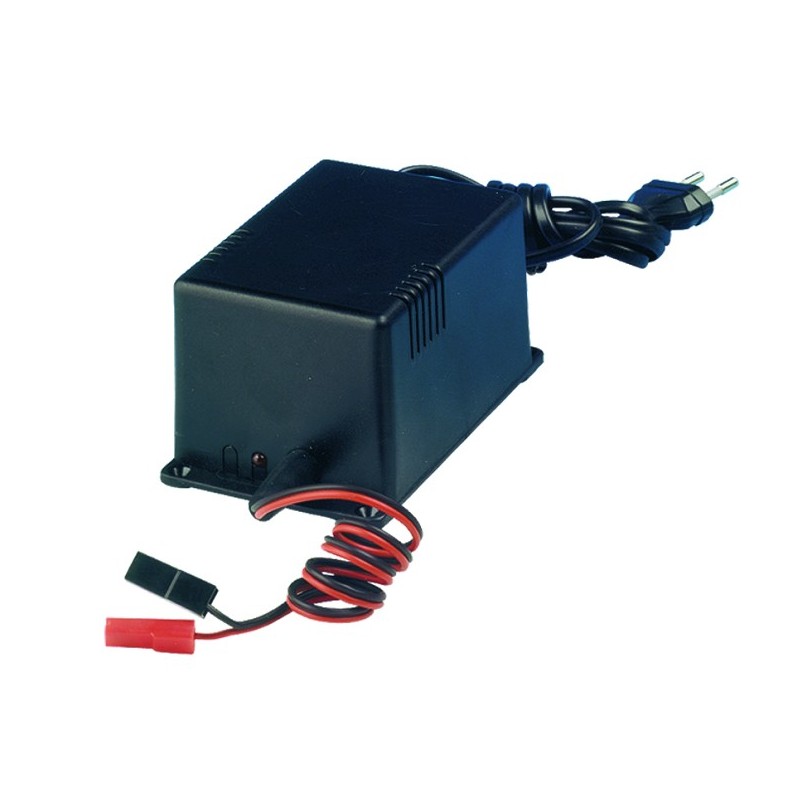

CBA6V10 caricabatterie 6V 1A progettati per ricarica degli accumulatori al piombo Codice 50002020

34 Articoli
Quantità



Garanzia di 2 anni per i privati ed 1 anno per le aziende.



Consegna entro 24/48 dalla ricezione del pagamento.



Restituzione della merce entro 14 giorni lavorativi

Download Datasheet Download Catalogo



I caricabatterie automatici presentati in questa pagina, sono quanto di più affidabile si possa concepire per una corretta ricarica degli accumulatori ermetici al piombo di capacità medio-piccola. La carica controllata da un SCR, permette di caricare gli accumulatori in modo soft, evitandone qualsiasi forma di surriscaldamento. Il diodo led rosso segnala le varie fasi di funzionamento del caricabatterie.

FUNZIONAMENTO: Il caricabatterie è protetto contro i cortocircuiti sull’uscita e le inversioni di polarità, è quindi sufficiente seguire il comportamento del diodo led per conoscere l’andamento della carica, ovvero:

1 –LED SPENTO: la batteria non è collegata o è difettosa.

2 –LED ACCESO: la batteria è sotto carica.

3 –LED LAMPEGGIANTE: Fine del ciclo, la batteria è carica, la si può lasciare in tampone per tempi illimitati.

Si consiglia di scegliere un caricatore con una corrente di carica tra 0.05 C e 0.2 C. Ovvero un tempo di carica compresa tra 20 e 5 ore. I caricabatterie serie PK sono tarati per carica in tampone, ovvero con una tensione di fine carica compresa tra 2.3 e 2.40 V/el. con Ta 20/25°C. Su richiesta è possibile fornire i caricabatterie tarati per uso ciclico (2.40 e 2.50 V/el.) In questo caso, si raccomanda a carica ultimata di spegnere il caricabatterie.







The automatic battery chargers shown in this page are the most reliable means to be used for a correct charging of the VRLA accumulators of medium-small capacity.The charge is controlled by an SCR, allowing the accumulator charging in a soft way, with no overheating whatever. The red led signals for the various functioning steps of the battery charger.

OPERATION:The battery charger is protected from shortage at outlet as well as from polarity reversals; therefore, simply look at the led behavior to know the charging progress state, namely:

1 – LED OFF: the battery is not connected or it is faulty.

2 – LED ON: the battery is on charge.

3 – FLASHING LED: End of cycle, the battery is charged; it may be left buffer-connected for an indefinite time.

We recommend choosing a charger with charging current ranging from 0.05 C to 0.2 C. This means a charging time ranging from 20 hrs to 5 hrs. The battery chargers Series PK are calibrated for buffer charging, i.e. with end-of-charge voltage between 2.3 and 2.40 Volts/el. with 20/25°C Ta. On request, the battery chargers may be delivered with calibration suitable for cyclic use (2.40 and 2.50 Volts/el.) In this case, once the charge is complete, cutting off the charger it is recommended.



50002020
34 Articoli

Scheda tecnica

Peso
1 kg
Pagina catalogo:
5
Dimensions LxWxH
75x120x65mm
